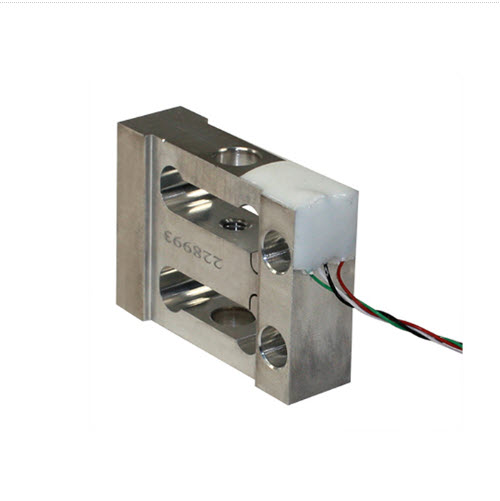

QSH01165 Futek Parallelogram Load Cell QLA215 , 5 lb
$0.00
QLA215 , 5 lb , Parallelogram Load Cell , Similar to LSM300 , Material – 2024-T4 , #10-32-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long
Specifications
Calibration
Electrical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
10
|
Vdc
|
||
|
Excitation
|
1
|
1
|
18
|
Vdc
|
|
|
Input Resistance
|
1
|
1000
|
Ohms nom.
|
||
|
Capacity
|
1
|
5
|
lbs
|
||
|
Hysteresis
|
1
|
-0.2
|
0.2
|
% of R.O.
|
|
|
Nonlinearity
|
1
|
-0.2
|
0.2
|
% of R.O.
|
|
|
Nonrepeatability
|
1
|
-0.05
|
0.05
|
% of R.O.
|
|
|
Output Resistance
|
1
|
1000
|
Ohms nom.
|
||
|
Rated Output
|
1
|
1
|
mV/V nom.
|
||
|
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
|
Operating Temperature
|
1
|
-60
|
200
|
F
|
|
|
Temperature Shift Span
|
1
|
-0.02
|
0.02
|
% of Load/F
|
|
|
Temperature Shift Zero
|
1
|
-0.02
|
0.02
|
% of R.O./F
|
|
|
Zero Balance
|
1
|
-5
|
5
|
% of R.O.
|
