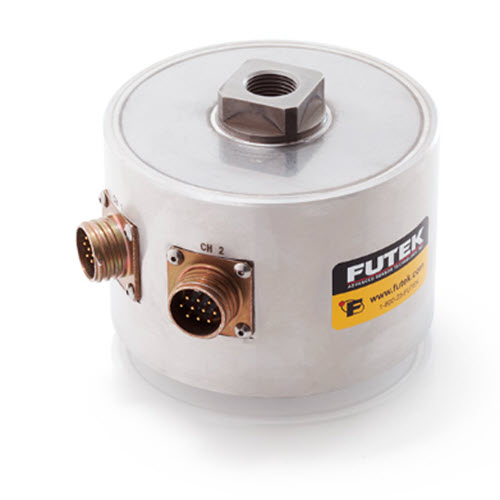

QSH01466 Futek Tension and Compression Overload Protected Load Cell QLA335 , Ch 1: 1000 lb; Ch 2: 1000 lb
$0.00
QLA335 , Ch 1: 1000 lb; Ch 2: 1000 lb , Tension & Compression Load Cell , Overload Protection , Dual Bridge , TEDS , Material – 17-4 PH S.S. , 5/8-18 Thread , 10 Pin Amphenol Receptacle, PC02-12-10P
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
1
|
10
|
Vdc
|
||
|
2
|
10
|
Vdc
|
|||
|
Excitation
|
1
|
1
|
15
|
Vdc
|
|
|
2
|
1
|
15
|
Vdc
|
||
|
Input Resistance
|
1
|
372
|
Ohms nom.
|
||
|
2
|
372
|
Ohms nom.
|
|||
|
Insulation Resistance
|
1
|
500
|
Mohms @ 50 Vdc
|
||
|
1
|
500
|
Mohms @ 50 Vdc
|
|||
|
Safe Overload
|
1
|
1000
|
% of R.O.
|
||
|
2
|
1000
|
% of R.O.
|
|||
|
Capacity
|
1
|
1000
|
lbs
|
||
|
2
|
1000
|
lbs
|
|||
|
Hysteresis
|
1
|
-0.2
|
0.2
|
% of R.O.
|
|
|
2
|
-0.2
|
0.2
|
% of R.O.
|
||
|
Nonlinearity
|
1
|
-0.2
|
0.2
|
% of R.O.
|
|
|
2
|
-0.2
|
0.2
|
% of R.O.
|
||
|
Nonrepeatability
|
1
|
-0.05
|
0.05
|
% of R.O.
|
|
|
2
|
-0.05
|
0.05
|
% of R.O.
|
||
|
Output Resistance
|
1
|
350
|
Ohms nom.
|
||
|
2
|
350
|
Ohms nom.
|
|||
|
Rated Output
|
1
|
2
|
mV/V nom.
|
||
|
2
|
2
|
mV/V nom.
|
|||
|
Compensated Temperature
|
1
|
60
|
160
|
F
|
|
|
2
|
60
|
160
|
F
|
||
|
Operating Temperature
|
1
|
200
|
F
|
||
|
2
|
200
|
F
|
|||
|
Temperature Shift Span
|
1
|
-0.005
|
0.005
|
% of Load/F
|
|
|
2
|
-0.005
|
0.005
|
% of Load/F
|
||
|
Temperature Shift Zero
|
1
|
-0.005
|
0.005
|
% of R.O./F
|
|
|
2
|
-0.005
|
0.005
|
% of R.O./F
|
||
|
Zero Balance
|
1
|
-3
|
3
|
% of R.O.
|
|
|
2
|
-3
|
3
|
% of R.O.
|
