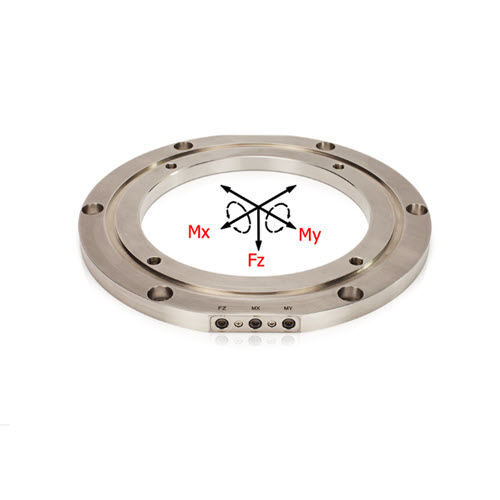

QSH01877 Futek Custom High Temp Tri-Axial Force/Torque Load Cell QMA141, Fz: 6000 lb, Mx, My: 6000 in-lb
$0.00
QMA141, Fz: 6000 lb, Mx, My: 6000 in-lb, Custom High Temperature & Water Resistant Tri Axial Sensor, Material – 17-4 PH S.S., IP67 , Operating Temperature up to 350 F [177 C] & High Humidity , 3x Ultimate 4 Pin Receptacle
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
| CHANNEL | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|
|
Calibration Excitation
|
Fz-1
|
10
|
Vdc
|
||
|
Mx-1
|
10
|
Vdc
|
|||
|
My-1
|
5
|
10
|
Vdc
|
||
|
Excitation
|
Fz-1
|
1
|
10
|
Vdc
|
|
|
Mx-1
|
1
|
10
|
Vdc
|
||
|
My-1
|
1
|
10
|
Vdc
|
||
|
Input Resistance
|
Fz-1
|
700
|
Ohms nom.
|
||
|
Mx-1
|
350
|
Ohms nom.
|
|||
|
My-1
|
350
|
Ohms nom.
|
|||
|
Safe Overload
|
Fz-1
|
300
|
% of R.O.
|
||
|
Mx-1
|
300
|
% of R.O.
|
|||
|
My-1
|
300
|
% of R.O.
|
|||
|
Capacity
|
Fz-1
|
6000
|
lbs
|
||
|
Mx-1
|
6000
|
in-lb
|
|||
|
My-1
|
6000
|
in-lb
|
|||
|
Nonlinearity
|
Fz-1
|
-1
|
1
|
% of R.O.
|
|
|
Mx-1
|
-2
|
2
|
% of R.O.
|
||
|
My-1
|
-2
|
2
|
% of R.O.
|
||
|
Output Resistance
|
Fz-1
|
700
|
Ohms nom.
|
||
|
Mx-1
|
350
|
Ohms nom.
|
|||
|
My-1
|
350
|
Ohms nom.
|
|||
|
Rated Output
|
Fz-1
|
1
|
mV/V nom.
|
||
|
Mx-1
|
0.5
|
mV/V nom.
|
|||
|
My-1
|
0.5
|
mV/V nom.
|
|||
|
Compensated Temperature
|
Fz-1
|
60
|
250
|
F
|
|
|
Mx-1
|
60
|
250
|
F
|
||
|
My-1
|
60
|
250
|
F
|
||
|
Operating Temperature
|
Fz-1
|
350
|
F
|
||
|
Mx-1
|
350
|
F
|
|||
|
My-1
|
350
|
F
|
|||
|
Temperature Shift Span
|
Fz-1
|
-0.02
|
0.02
|
% of Load/F
|
|
|
Mx-1
|
-0.02
|
0.02
|
% of Load/F
|
||
|
My-1
|
-0.02
|
0.02
|
% of Load/F
|
||
|
Temperature Shift Zero
|
Fz-1
|
-0.01
|
0.01
|
% of R.O./F
|
|
|
Mx-1
|
-0.01
|
0.01
|
% of R.O./F
|
||
|
My-1
|
-0.01
|
0.01
|
% of R.O./F
|
||
|
Zero Balance
|
Fz-1
|
-5
|
5
|
% of R.O.
|
|
|
Mx-1
|
-10
|
10
|
% of R.O.
|
||
|
My-1
|
-10
|
10
|
% of R.O.
|
