119499 IMS Company Temperature Controller

119499 IMS Company Temperature Controller

Description:

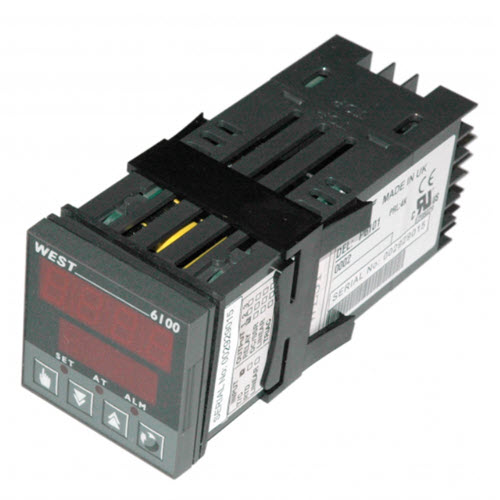

1/16 Din West Model 6100+, Temperature Controller, 32-842F J Range, (1) Standard Relay Output.

These units will hold barrel and nozzle temperatures to within a 2° F to 3° F variation. The 3-digit LED displays
provide maximum visibility at a glance. A wide selection of options ensure that you pay only for the functions you
need.

See 135686 For Ssr Relay Output Former Item# Coc3-N6101Fj

Three tuning options:

• Pre-tune — This is a single shot tune that increases
  the power to 2/3 of setpoint and then turns off until the
  process slows and the PID terms can be calculated.
  The setpoint is then returned to normal and the
  process goes to temperature using the PID terms
  it has calculated.
• Self-Tune — This is a continuous tune that runs while
  the process is on control.
• Manual Tune — This is where you enter your own
  calculated PID terms.

Features:

• Microprocessor-based closed-loop temperature control
• Configurable directly from a PC
• Accommodates a variety of thermocouple and sensor types
• Pre-programmed for 32° F to 842° F range with Type J T/C input
• Large, dual LED display of temperature and setpoint
• Power relays turned off if T/C fails
• User-defined setpoints for process temperature
• User-defined setpoints for temperature high and low alarms
• Bumpless auto/manual transfer
• Field upgradeable
• Sealed control panel
• Password protected operator access
• 1∕16 DIN panel sizes
• CE approved, UL and Canadian UL recognized or pending

Options:

• Celsius display of temperature and setpoint
• Handles Type K T/C input for higher temperatures
• Second relay output (secondary control or alarm 2)
• Third relay output (alarm 1 or DC recorder output — setpoint or process variable)
• Field installable RS485 serial communications protocols
• Dual setpoint operation
• 20-50 VAC/VDC power input
