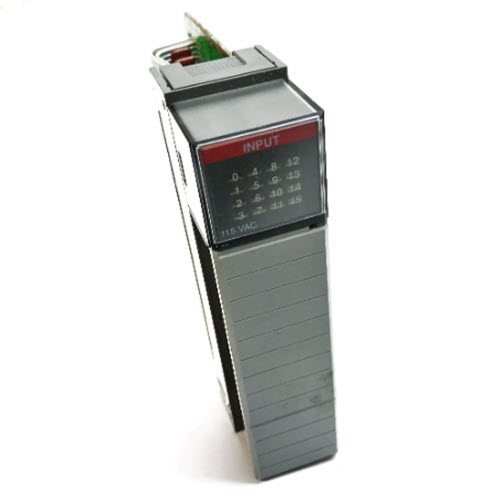

AC input module compatible for use as component of SLC 500 controller platform. This input module has Sixteen (16) channels that accepts AC signal voltage range of 85-132 VAC.

Features:

• It provides real-time interface to discrete devices in the process.
• It represents the actual state of signaling devices for reference of the controller for processing the logic.
• Most PLC systems perform Input scan as the primary phase for executing a user program.
• If input signals are not detected, the controller will have no reference for executing the program.
• Has Twenty (20) terminals. All terminals are used with terminals 18 and 19 serving as internally connected commons.
• The terminal block of this module is removable allowing replacement of the input module while eliminating the need to reconnect the input terminations.
• It has adjustable parameters to fine tune the module’s operation.
• There is no limit when installing the 1746-IA16 as long as the chassis has available slots to support the installation.
• This module may be installed in fixed hardware or modular hardware style controller, locally or in an expansion rack.
• Operating voltage category of 100-120VAC. For 200/240VAC voltage operation, the counterpart part number is 17460IM16.
• Both modules does not offer internal protection circuitry.
• Any AC input device that will be terminated to this module shall be compatible with SLC 500 input circuit inrush current.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1746-IA16
• Series SLC 500
• Module Type Digital AC Input Module
• Voltage Range 85-132 Volts AC
• Backplane Current (5 Volts DC) 85 milliamps
• Inputs 16
• Signal delay 35 or 45 milliseconds
• Off State Current 2 milliamps
• Backplane Current (5 Volts DC) 85 milliamps
• Signal delay, ON 35 ms
• Slots 1
• Signal Delay, OFF 45 milliseconds
• I/O Connection 1746-HT and 1746-HCA
• Step Response 100 milliseconds in, 2.5 milliseconds out
• OFF state Voltage, max 50V AC
• UPC 10662468067086
