1746-IC16 Allen Bradley

1746-IC16 Allen Bradley

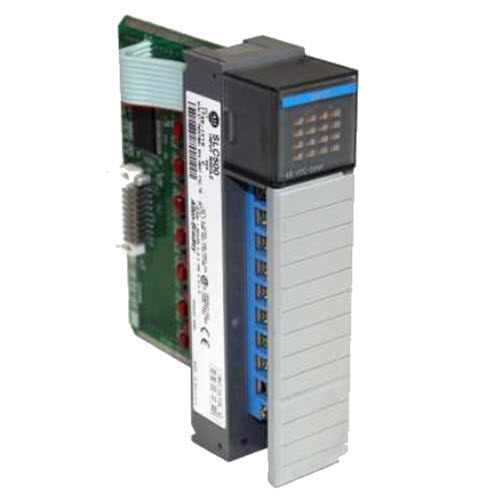

is a 48V DC sinking module with 16 sinking inputs that uses a Removable Terminal Block (RTB). Its temperature-dependent voltage ranges between 30 and 60V DC sinking at 55°C and between 30 and 55V DC sinking at 60°C.

Features:

• The 1746-IC16 has a backplane draw current of 0.085A at 5V DC and one of 0A at 24V DC.
• The electrical signal in the input points has a maximum delay time of 4ms for both the ON and the OFF condition.
• Has an OFF-state voltage loss of 10V DC, a current leakage of 1.5mA, and the nominal current on the overall inputs is 4.1mA at a nominal module voltage of 48V DC.
• Provides a circuit isolation between the backplane and the inputs at 1500V AC tested for 60s
• has a dielectric withstand of 1500V AC.
• Operating temperature range is between 0 and 60 °C (32 and 140 °F) at 5-95% relative humidity.
• Its non-operational storage temperature ranges between 40 and 85 °C (-40 and 185 °F).
• Has an operational shock of 30G (3 directional pulses for 11ms) and it can withstand a vibration of 1.0G at 5-200Hz.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1746-IC16
• Series SLC 500
• Module Type Digital DC Input Module
• Voltage Range 30-55 Volts DC Sink
• Inputs 16
• Backplane Current (5 Volts DC) 85
• Signal delay 4 milliseconds
• Off State Current 1.5 milliamps
• Applications General Purpose 48 Volts DC Inputs
• I/O Connection 1746-HT and 1746-HCA
• Step Response 100 milliseconds in, 2.5 milliseconds out
