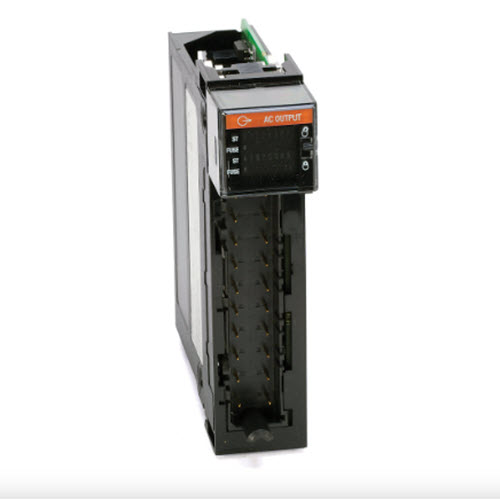

1756-OA16 Allen Bradley
$0.00
1756-OA16 Allen Bradley
Description:
Is a ControlLogix Discrete output module which operate at a voltage category of 79 to 265V AC at a frequency of 47 to 63 Hz. This module has Sixteen (16) mechanically fused channels with Two (2) groups of Eight (8) channels each.
Detalles
1756-OA16 Allen Bradley
Description:
Is a ControlLogix Discrete output module which operate at a voltage category of 79 to 265V AC at a frequency of 47 to 63 Hz. This module has Sixteen (16) mechanically fused channels with Two (2) groups of Eight (8) channels each. This module is directly installed to a 1756 local or remote chassis.
Specifications:
- Manufacturer Rockwell Automation
- Brand Allen-Bradley
- Part Number/Catalog No. 1756-OA16
- Series ControlLogix
- Module Type Digital AC Output Module
- Outputs 16-Points
- Voltage 120-140 Volts AC
- No. of Outputs Sixteen (16) mechanically fused
- Voltage Category 120 / 240 Volts AC
- Maximum Output Current Rating-Point 0.5 Amps at 60 degrees Celsius
- Operating Voltage Range 74-265 Volts AC
- Maximum Output Current Rating-Module 4 Amps at 60 degrees Celsius
- Output Delay Time Programmable 9.3 or 11 milliseconds
- Current per point 0.5 A @ 60 °C (140 °F)
- Current per module 4 A @ 60 °C (140 °F)
- Removeable Terminal Block(s) 1756-TBNH, 1756-TBSH
- Isolation Voltage 50 Volts Continuous
- Power Dissipation (Max) 6.5 W @ 60 °C (140 °F)
- Enclosure None
- Backplane Current at 5 Volts 400 mA
- UPC 10612598171368
- Backplane Current at 24 Volts 2 mA
- Removable Terminal Block(s) 1756-TBCH, 1756-TBSH
