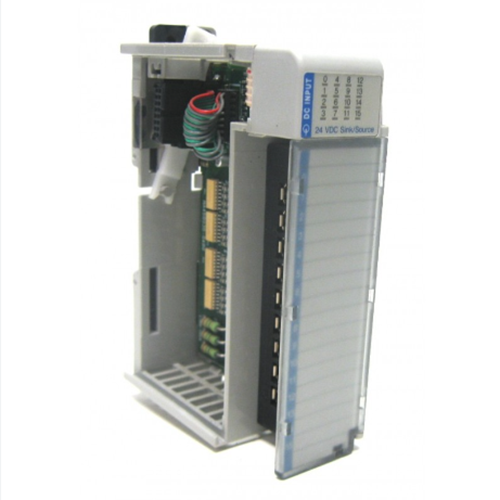

1769-IG16 Allen Bradley

1769-IG16 Allen Bradley

Compact input TTL module by Allen-Bradley is an input module with 16 current-sourcing low to true inputs, and an operational voltage range of 4.5 to 5.5 Volts DC. It has a 50mV peak-to-peak ripple voltage and an 8 milliseconds input signal delay time.

Features:

• It is a digital input module with a digital filter with 0 seconds, 100 milliseconds, 500 milliseconds, 1 milliseconds, 2 milliseconds, 4 milliseconds, and 8 milliseconds selectable delay times for both ON to OFF and OFF to ON delay times.
• The 1769-IG16 has a draw current of 120mA at 5.1 Volts DC and dissipates 1.6W heat when operational.
• OFF-state voltage range between 2.0 and 5.5 Volts DC at 4.1mA
• ON-state voltage range of 2 to 5.5 Volts DC.

Specifications:

• Manufacturer Rockwell Automation
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-IG16
• Product Line CompactLogix
• Module Type 16 Point TTL Input Module
• Input Type TTL Input
• Communication Cable 16 Point
• Shipping Weight 2 lbs.
• Shipping Dimensions 8 x 8 x 5 in.
• Series A and B
• Distance Rating 8 Modules
• Working Voltage Rating 30 Volts AC/ 30 Volts DC
• Replacement Terminal Block 1769-RTBN18
• Wire Type Copper-90 degrees Celsius
• Wire Size (Solid) 22-14 AWG
