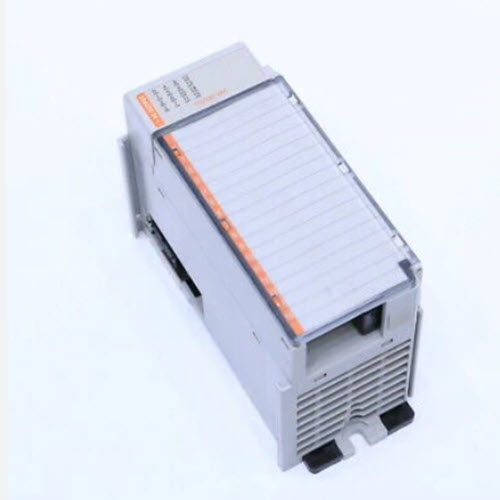

Is a discrete output module from the 1769 Compact I/O product family. This module delivers 85-264 VAC voltage range with frequency of 47-63 HZ. This module has 1.5 slot width that is compatible for use with the CompactLogix and MicroLogix 1500 controllers.

Features:

• This module can be used to directly energize devices operated by AC voltages.
• Some of these devices are contactors, relay and solenoid actuated devices; Indicating devices such as pilot lamps; Sounding devices including buzzer, siren, and horn.
• This module may also be used to indirectly power DC rated devices with the use of an interposing circuitry.
• Output fusing is recommended for installation to each output channel to protect the module from damage.

Specifications:

• Manufacturer Rockwell Automation
• Output Voltage 120/240 VAC output
• No. of groups Two (2) output groups
• No. of Outputs Sixteen (16) outputs
• Series 1769 Compact I/O
• Operating Voltage Range 85-264 VAC
• Output Delay Time, OFF to ON ½ cycle
• OFF state leakage current 2.0 mA @ 132V AC 2.5 mA @ 265V AC
• Backplane Current at 5.1 Volts 225 mA
• Continuous current per point 0.50 A @ 30 °C (30 °C) 0.25 A @ 55 °C (60 °C)
• Brand Allen-Bradley
• Part Number/Catalog No. 1769-OA16
• Module Type Digital AC Output Module
• Continuous current per module, max 2.0 A @ 30 °C (30 °C) 4.0 A @ 55 °C (60 °C)
• Product Line CompactLogix
• Communication Cable 16-Point
• Shipping Weight 2 pounds
• Shipping Dimensions 8 x 8 x 5 inches
• Wire Type Copper 90 degrees Celsius
• Enclosure Open
• Power Supply Distance Rating 8 Modules
• Voltage Category 100 to 240 Volts AC
• Wire Size (Solid) 22-14 AWG
• Wire Size (Stranded) 22-16 AWG
• UPC 10612598286222
• UNSPSC 32151705
