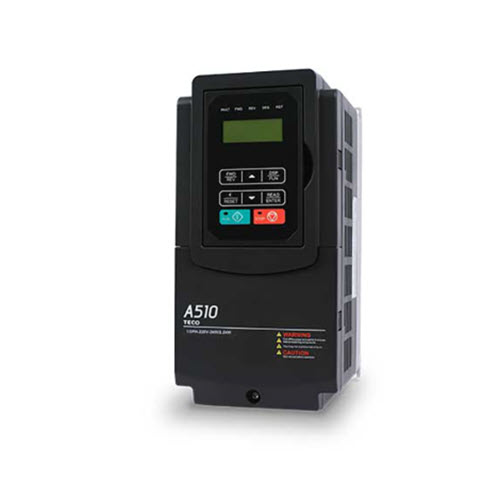

A510-4020-C3-UE TECO-Westinghouse HP 460V NEMA 1 HEAVY-DUTY TECO AC DRIVE

Heavy duty DRIVE
SERIES A510
460 V 3-phase
Includes dynamic braking transistor
CONSTANT TORQUE 20HP 31.0AMP
VARIABLE TORQUE 25HP 38AMP
DIM H X W X D 11.80 X 8.27 X 8.46 INCHES
SIMPLE PLC FUNCTION BUILT-IN
ADVANCED REGENERATIVE LOAD HANDLING CAPABILITY

Attributes

UNIT WEIGHT
13.60 lbs

HORSE POWER
020.00 HP

VOLTAGE
460 VAC

SUPPLY PHASE
3-PHASE

OUTPUT PHASE
3-PHASE

DISCONNECT
NO

BYPASS
NO

CONTACTORS
NONE

COMMUNICATIONS
MODBUS RTU

NEMA RATING
IP20 | NEMA 1

HARMONIC MITIGATION
NO

EMC FILTER
NO

CONTROL TYPE
FLUX VECTOR CONTROL | SENSORLESS VECTOR CONTROL | V/Hz

ADD-ON COMMUNICATION MODULE
CANopen | EtherCAT | PROFIBUS

DIGITAL+ANALOG INPUT
8 DIGITAL INPUTS + 2 ANALOG INPUTS

ANALOG+DIGITAL OUTPUT
2 ANALOG OUTPUTS

RELAY OUTPUTS
2 PROGRAMABLE SPST + 1 PROGRAMABLE SPDT
