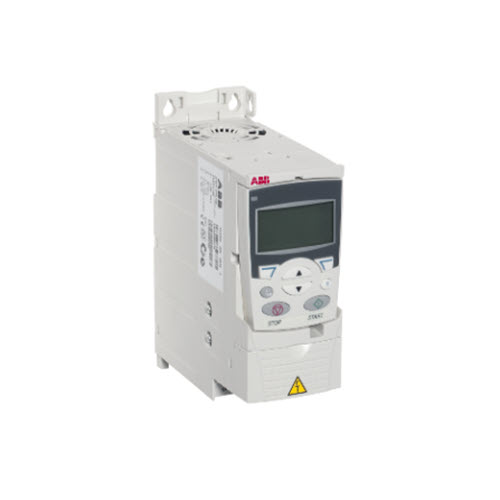

ACS355-03U-05A6-4 ABB 3AUA0000058217 LV AC Machinery Drive Module 480 V

Global Commercial Alias:
ACS355-03U-05A6-4
Product ID:
3AUA0000058217
ABB Type Designation:
ACS355-03U-05A6-4
EAN:
6438177223924
Catalog Description:
LV AC Machinery Drive Module, 480 V (ACS355-03U-05A6-4)
Long Description:
The ACS355 drives are designed to meet the requirements of an extensive range of machinery applications in food and beverage, material handling, lifting, textile, printing, rubber and plastics, and woodworking applications. The drive is user-friendly, yet it provides a wide range of built-in technology such as the safe torque off functionality and sequence programming, reducing the need for additional control electronics. The product offers options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors.OrderingCustoms Tariff Number:
85044080
HS Code:
850440 — ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description:
ACS355-03U-05A6-4, 240VAC, Pn 5.6HP, I2LD 3 A, IP20
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
pieceDimensionsProduct Net Weight:
2.6 lb
Product Net Depth / Length:
6.34 in
Product Net Height:
9.41 in
Product Net Width:
2.76 inTechnicalNumber of Phases:
3-phase
Degree of Protection:
IP20
Enclosure Type NEMA:
Open Type
Frequency (f):
50/60 Hz
Frame Size:
R1
Input Voltage (Uin):
380 … 480 V
Mounting Type:
Wall-mounting
Apparent Power Output:
2.7 kV·A
Efficiency Level:
IE2
Standby Loss:
7 W

Technical ULOutput Current, Heavy-Duty Use (UL):
5.6 A
Output Power, Heavy-Duty Use (UL):
3 HpExternal Classifications and StandardsUNSPSC:
39122001EnvironmentalSCIP:
89151bc5-de13-4ade-aa5f-5835a88f8822 Finland
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
