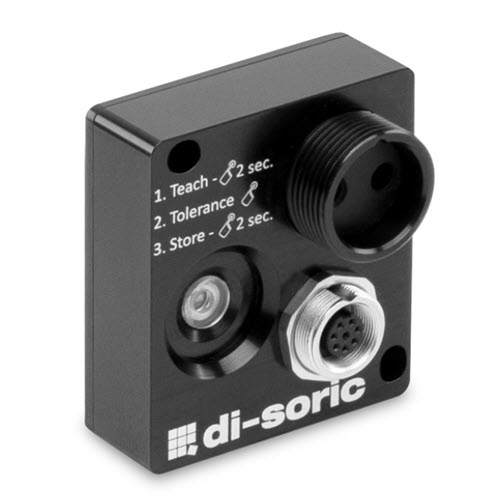

The FS-10 color sensor is suited for narrow installation space conditions. With the teach-in key, a color channel can be learned intuitively and saved in the sensor. With Multiteach and permanently stored tolerance thresholds, the finest color nuances can be distinguished.
- Adjustable color tolerance
- Distinction of smallest shade nuances
- High ambient light compensation
- Integrated long-term stability
- Status display via LEDs
- Status display via LEDs
Electrical features
Service voltage
12 … 28 V DC
No-load current (max.)
500 mA
Mechanical features
Housing dimensions
41 x 46 x 14 mm
Fiber-optic cable connection / fixed optics
M18 x 1
Housing material
Aluminum (Anodized)
Certifications, approvals
Protection class
III, operation on protective low voltage
General features
Operating mode
- Continuous
- External triggering
Functional scope
Number of measuring channels
1
Color channels of sensor
1 (Teachable via keys)
Scanning block
Lock (+24 V DC)
Color space mode
L*a*b* (Body colors)
Detection modes
- Minimum spacing (Assignment of the measured color to the stored color with the smallest color difference)
- Check sphere (Check whether the measured color is within a specified tolerance)
Output, input, interface
Trigger input
TRG (+24 V DC)
Switching output
Push-pull (1x), 200 mA, NO (pnp) / NC (npn)
Pulse stretching
0 ms / 50 ms (selectable)
Optical data
Light spot size
Dependent on focus optics
Color resolution
DE Lab < 1
Ambient light immunity
15 kLx
Ambient light compensation
dynamic
Detection range, measuring range, tolerance limits
Range
Dependent on fiber-optic cable
Switching hysteresis (max.)
10 %
Tolerance ranges
5 levels (3, 6, 9, 15, 30 ∆ELab), automatic tolerance in multiteach mode
Display, operation
Display
LED (Integrated in the operating key)
Ambient conditions
Ambient temperature during operation
-15 … +55 °C
Electrical connection
Connection
Connector, M9, 8-pin
