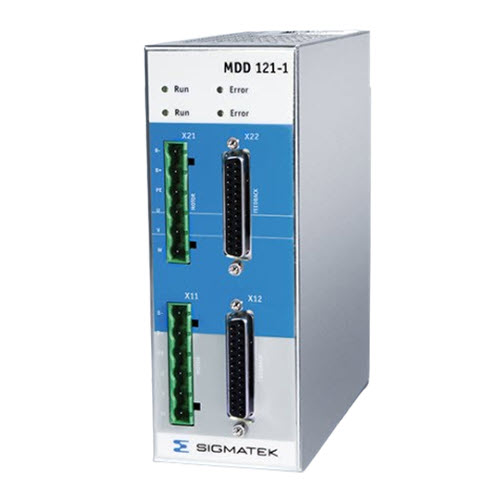

MDD 121-1 SIGMATEK Drive Module 2-axis module for DIAS Drive 100

MDD 121-1
Drive Module

2-axis module for DIAS Drive 100
At 230 V AC: 6 A max. total current or 18 A max. total peak current
At 400/480 V AC: 4 A max. total current or 12 A max. total peak current
Control of servo, linear, torque and asynchronous motors
Resolver, EnDat, Hiperface, Sanyo Denki and Sin/Cos encoders possible

Performance Data

Supply module rated voltage

230 or 400/ 480 V AC

Nominal current axis 1 3, max. 5 or. 2, max. 3 ARMS
Nominal current axis 2 3 or 2 ARMS
Peak current axis 1 9, max. 15 or 6, max. 9 ARMS
Peak current axis 2 9 or 6 ARMS
Intermediate circuit capacitance 60 µF
