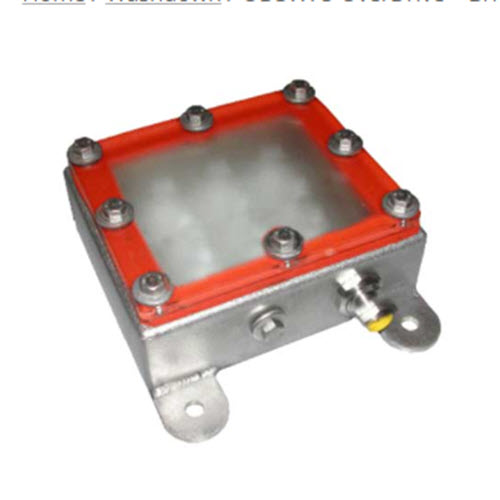

ODSW75-WHI-L Smart Vision Lights OverDrive Brick Light White Line

Product Details

• Illumination Type:Bright Field, Dark Field, Direct Lighting
• IP Rating:IP68
• Min Working Distance:300 mm
• Max Working Distance:4000 mm
• Mode:OverDrive

The ODSW75 Brick Light Series of spot lights features a 316 stainless-steel IP68-rated enclosure specially designed for the food industry and washdown environments. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or by adjusting the built-in manual potentiometer.

PRODUCT SPECIFICATIONS
Electrical Input 24VDC +/-5%
Input Current Peak 3 A draw during strobe
Input Power Peak 72 W during strobe
PNP Trigger 2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC
NPN Trigger 14.4 mA @ Common (OVDC)
Trigger Input PNP > +4VDC (24VDC max.) to activate or NPN > GND <1VDC to activate (not both)
Strobe Duration Min. 1 us Max. 50 ms
Strobe Frequency Max 4 kH zor1/ Duty Cycle as calculated, whichever is less*
Duty Cycle Max 10%*
Potentiometer 270° turn pot — intensity control of 10%-100%. Turn clockwise to increases intensity.
Analog Intensity The output is adjustable from 10%-1 00% of brightness by a 1 -10 V DC signal.
Connection 5-pin M12 connector
Ambient Temperature -10° to 40°C(14° to 104° F) RH max 80% non-condensing humidity
Storage Temperature -10° to 40°C(14° to 104° F) RH max 80% non-condensing humidity
IP Rating IP68
Weight -710g
Compliances CE, RoHSJEC 62471
