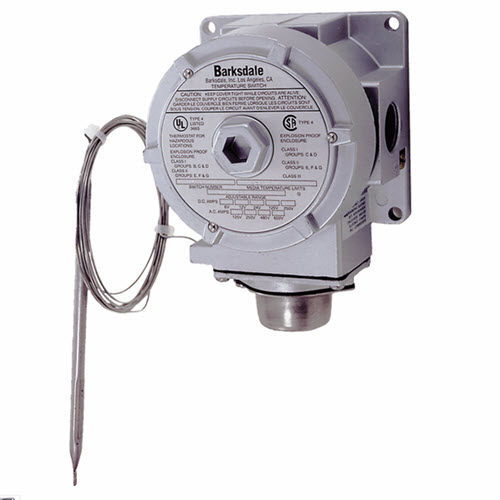

TXR-L2S-10-Q10 BARKSDALE TXR SERIES EXPLOSION PROOF TEMPERATURE SWITCH

Barksdale’s TXR & TXL Series Temperature Switches add flexibility to Barksdale’s solid reputation for quality & reliability and offer versatility for your temperature switching needs. These thermostats are ideal for freeze protection or temperature control in hazardous applications. The TXR & TXL Series thermostats feature 10 foot stainless steel sensors for remote monitoring and local mount sensors for ambient temperature sensing.



The TXR & TXL Series feature limit switches with 22 amps @ 125/250 VAC and 3 amps @ 480 VAC electrical ratings that allow thermostats to be used for higher current, heat tracing applications. The TXR & TXL Series models are all UL listed & CSA approved and ATEX certified for use in hazardous zones within the European Community.



Features:

• Explosion-proof
• High accuracy
• Line or ambient sensing
• UL, CSA & ATEX approved

Applications:

• Heat tracing
• Hydraulic power units
• Combustion engines
• Compressors
• Machine tools and industrial equipment
• Process equipment

General Specifications

Accuracy:	±1% of full scale
Electrical Connection:	3/4″ NPT female conduit connection. 3 pole terminal block accepts 14-10 AWG wire.

Adjustable Range

Low	High
+25° F	+325° F

Switch

Type:	Remote bulb & capillary Heat tracing temperature switch Single pole double throw (SPDT), prewired snap action
Rating:	22 amp @ 125/250/480 VAC

Bulb & Capillary

Material:	316L stainless steel
Bulb & Capillary Length:	10 ft.
System Pressure (max):	300 psi without thermowell
Fill:	Silicone oil-filled
Wetted Material:	Stainless steel sensor
Enclosure:	NEMA 4, 7, 9 & IP65 Anodized aluminum, Explosion Proof Painted silver
