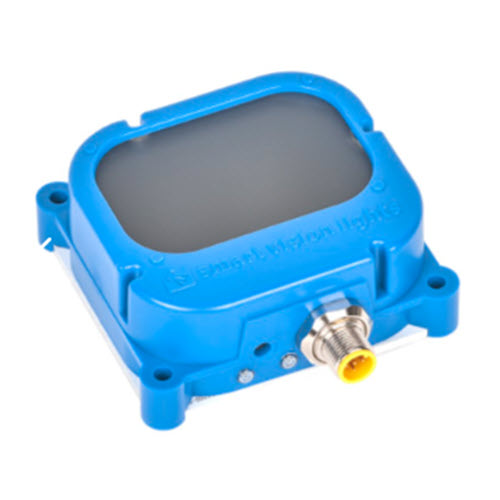

S75-570-W Smart Vision Lights Brick Light Blue Wide



The S75 Brick Light Series is a spot light that features a built-in smart driver. NPN or PNP trigger signal inputs can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or by adjusting the built-in manual potentiometer. Heat is dissipated through the aluminum back plate, which allows the S75 Brick Light Series to be run at a higher intensity current.

Please note that Line Lenses are not offered in UV wavelengths.

SPECIFICATIONS

Electrical Input 24 VDC +/- 5%

Input Current Max. 400 mA

Input Power Max. 9.6 W

PNP Trigger 2.8 mA @ 4VDC | 8.8mA@12VDC | 17.6mA@24VDC

NPN Trigger 14.4 mA @ Common (OVDC)

Trigger Input PNP > +4 VDC (24 VDC max.) to activate or NPN 2 GND <1VDC to activate (not both)

Strobe Duration Min. 30 us 1 Max. 00

Strobe Trigger Latency 10 us

Power Indicator Turns green when powered up

Status Indicators Strobe indicator will turn yellow when on

Intensity Limit 270° turn-pot. Turn clockwise to increase intensity limit.

Analog Intensity The output is adjustable from 10% -100% of intensity limit bya1 -10 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity

Connection 5-pin M12 connector

Operating Temperature -1 0° to 40° C (1 4° to 104° F) I RH max 80% non-condensing humidity

Storage Temperature -20° to 70° C (-4° to 158° F) I RH max 80% non-condensing humidity

IP Rating IP50

Weight -0.34 lbs I -370 g

Compliances CE, IEC 62471, RoHS

Warranty 10 years’
