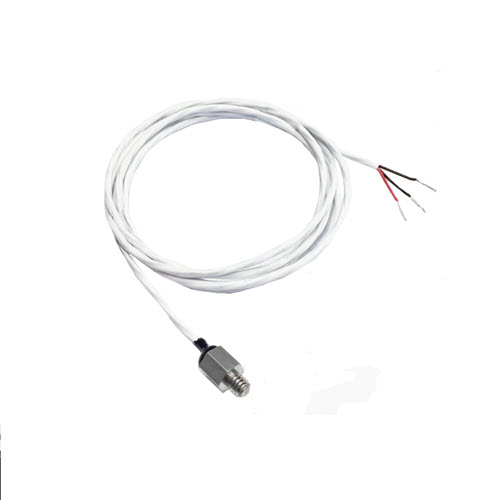

SMTS-RTD-PT100-036-3-N-08 Harold G. Schaevitz MINIATURE SURFACE MOUNT THREADED STUD RTD SENSOR – PT100 3 foot cable
$0.00
OVERVIEW
• PT100 Class A RTD Element
• 26 AWG FEP insulated conductors, stranded
• 316 Stainless steel, #8-32 male threaded fitting
• Miniature size
MADE IN THE USA
The SMTS-RTD Surface Mount Threaded Stud RTD Sensor is designed to deliver high performance temperature measurements, reliably and consistently. The stainless steel fitting may be threaded in to a #8-32 tapped surface. These temperature sensors are designed for Research and Development, test labs, manufacturing engineering and production environments. They can be customized for OEM applications as well.
TECHNICAL SPECIFICATIONS
|
RTD Element Type: |
Thin film platinum, 100Ω at 0°C, α =0.00385 |
|
Range: |
-90 to 500°F (-70 to 260°C) |
|
Accuracy: |
Class A, +/- 0.15°C |
|
Fitting Housing Material: |
Aluminum |
|
IP Rating: |
IEC IP64 |
|
Response Time*: |
6 Seconds |
|
Lead Wire: |
Teflon™ insulated, 26 AWG, stranded conductors |
|
Wiring: |
3-Wire |
Detalles
