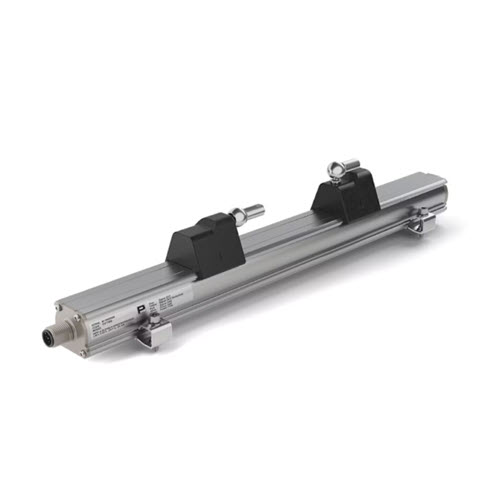

WPP-A-B-2000-N 0000X000X00X0XX Gefran F305907 Contactless linear position transducer 2000mm

WPP-A-B-2000-N 0000X000X00X0XX, Gefran Linear Transducer

Main features

Optimised mechanical structure
Strokes from 50 to 2500 mm
Sliding or floating magnetic cursor

Contactless linear position transducer with HYPERWAVE magnetostrictive technology. The absence of electrical contact on the cursor eliminates all wear and guarantees almost unlimited life. High performance in terms of environmental IP protection and EMC immunity. High accuracy of the mesurement with reference to the non linearity, repeatability and hysteresis. High resistance to vibrations, mechanical shocks for use in a harsh industrial environment.

Optimised mechanical structure
Strokes from 50 to 2500 mm
Sliding or floating magnetic cursor
Availability of several analogue outputs (voltage or current)  for direct position and speed measurement or reverse  measurement (only position)
Single or double cursors models availability
Power supply 24Vdc ±20%
Resistance to vibration (DIN IEC68T2/6 12g)
IP67 protection
Work temperature: -30…+75°C
Electromagnetic compatibility EMC 2014/30/EU
Compliant to the directive RoHS 2011/65/EU
