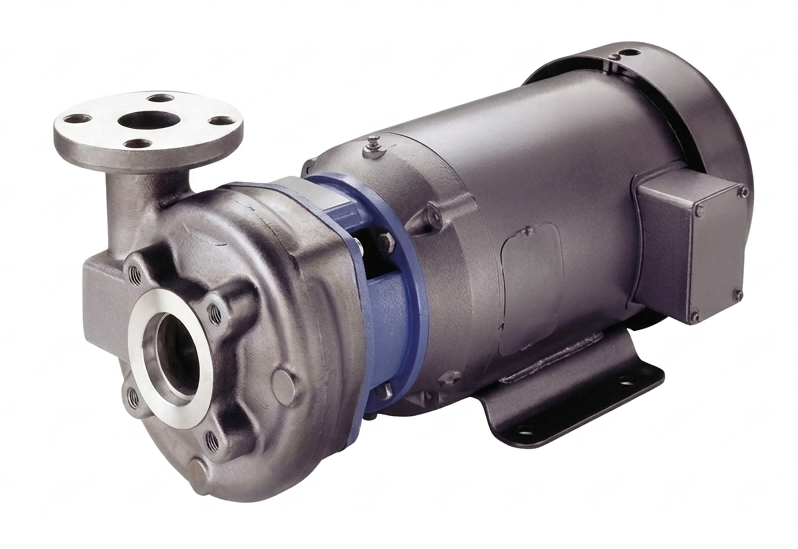

3SS1J9B0 XYLEM (GOULDS WATER TECHNOLOGY) CENTRIFUGAL PUMP

3SS1J9B0 XYLEM (GOULDS WATER TECHNOLOGY) CENTRIFUGAL PUMP

SPECIFICATIONS:

• Brand: Goulds Water Technology (Xylem)
• Base Model / Series: Series 3657 / 3757 (Stainless Steel Centrifugal)
• Product Type: End-Suction Close-Coupled Centrifugal Pump
• Part Number / SKU: 3SS1J9B0
• 3: Series 3657 Size 1 ½ x 2-6 (Flanged connection format).
• SS: 316 Stainless Steel casing and liquid end components.
• 1: Single-stage configuration.
• J: 5 HP Motor Power.
• 9: Three-Phase electrical supply (60 Hz).
• B: TEFC (Totally Enclosed Fan Cooled) motor enclosure type.
• 0: 208-230/460 Volts voltage rating.
• Maximum Flow Rate: 183 GPM (Gallons Per Minute).
• Maximum Head (Pressure): 130 ft (Max vertical lift capacity).
• Motor Speed: 3500 RPM (2-Pole high speed).
• Impeller Diameter: 5.625″ (5 ⅝”) Enclosed Type.
• Suction Size: 2″ ANSI Flanged Inlet.
• Discharge Size: 1 ½” ANSI Flanged Outlet.
• Mechanical Seal: Standard Flowserve Type 31 (Carbon vs. Silicon-Carbide faces with Viton elastomers).
• Maximum Liquid Temperature: 250°F (121°C).
• Maximum Working Pressure: 175 PSIG (12 bar).
