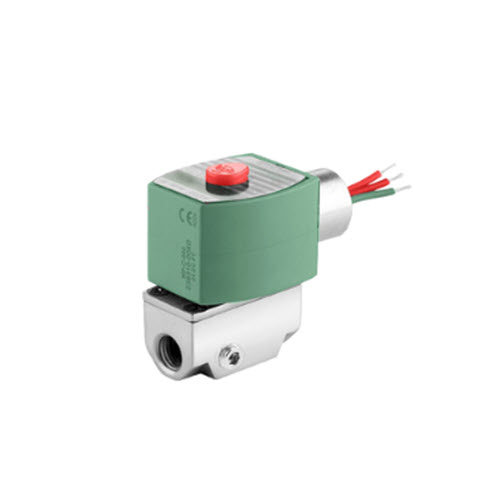

8040H007 ASCO Solenoid Valve 2-way 1/4 NPT Normally Closed Low Pressure Brass Body

Valve type: Direct acting, 2-way normally closed
Port size: 1/4 inch NPT
Body material: Aluminum (note: The query specifies brass, but the 8040H007 is an aluminum body valve)
Orifice size: 5/16 inch
Seal material: NBR (Buna N)
Flow capacity (Cv): 1.1
Maximum operating pressure: 15 PSI
Minimum operating pressure: 0 PSI
Media: Air, fuel gas, inert gas
Operating temperature range: -40°F to 125°F (-40°C to 52°C)
Gas capacity: 59,000 BTU/hr Electrical specifications
Details on the electrical requirements for the 8040H007 are available from retailer and manufacturer documents. Standard voltages: 120 VAC, 60 Hz and 110 VAC, 50 Hz
Wattage (60 Hz): 6.1 W
Coil insulation: Class F
Electrical connection: 1/2-inch conduit with 18-inch leads Construction and approvalsInternal parts:

Core and plugnut: 430F stainless steel
Core tube: 305 stainless steel
Springs: 17-7 PH (for the 8040H007)

Enclosure: Watertight (Types 1, 2, 3, 3S, 4, and 4X)
Approvals: UL, CSA, and FM approved
