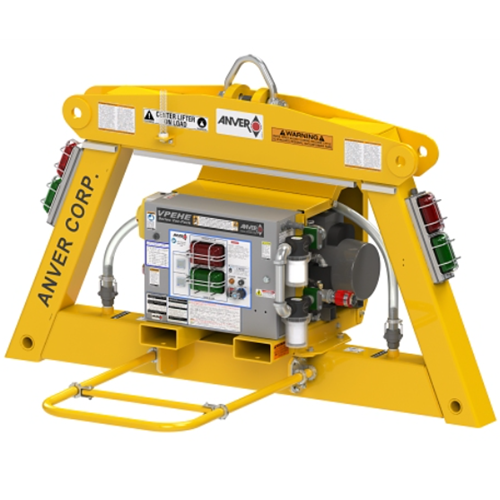

GF10T75 Anver Heavy Duty Electric Powered Vacuum Generator Lifting Frames

The GF Series generators incorporate the latest in sophisticated lifting technology for the handling industry, increasing speed, productivity and efficiency. Available in electric and battery powered. Vac-Packs can be replaced in minutes to minimize downtime in case of service. The GF-Series speeds production due to a large reservoir allowing the lifter to attach almost instantly, decreasing attach time. The large reservoir not only increases efficiency but also increases safety in the case of power failure due to the vacuum that remains in the system.


Features:

• State-of-the-art Vacuum Control which minimizes vacuum pump use greatly increasing number of hours between servicing.
• Dual redundancy safety Lock-out Lifting Bail that requires operator to first set the unit down before they release the load.
• Front Control Panel and Gauges
• Indicator Lights
• Vacuum Retention
• Thermal Overload Protection
• Ergonomic Adjustable Front Handlebar
• Audible Vacuum Leakage Warning System

For Electrical Power Requirements refer to individual vacuum generator series pages (see table below).

NOTE: Maximum lifter capacity and lifter weight combined can not exceed 22,500 LB (10,205 KG

Vacuum Generator Series BAE10-17 VPE3-GEN2 VPEHE24 VPEHE48 VPEHE75 Motor [HP] 1 2x 3/4 1.5 3 5 Vacuum Pump [SCFM] 17 2x 8 24 50 78 Unit Weight [lb (kg)] 978 (444) 837 (380) 730 (332) 932 (423) 1050 (477) Vacuum Level at Sea Level [in. Hg (mmHg)] 24 24 24 24 24 Reservoir Size [Gallon (L)] 30 (114) 33 (126) 30 (114) 30 (114) 30 (114) Energy Saver / Quiet Automatic Shut-Off YES YES YES YES YES
