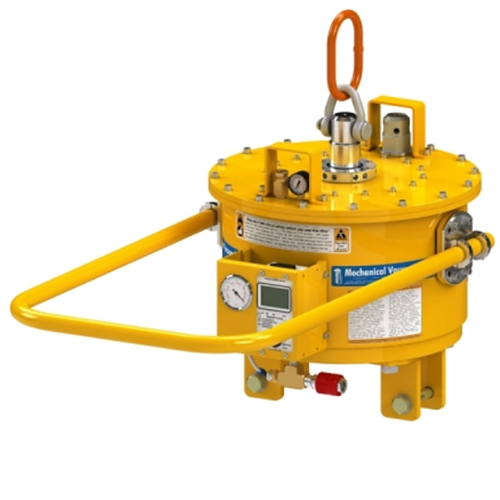

M250M-5X7 Anver Self-Powered and Self-Cycling Mechanical Vacuum Generators
$0.00
Unique Features of ANVER Mechanical Vacuum Lifters
- Instant attach and release is provided via the hoist up and down movement. The attach and release alternates each lift cycle for fast, efficient handling. Mechanical vacuum lifters increase the speed and efficiency of the horizontal handling of sheet and plate, panels, and all types of nonporous materials.
- Simple to operate. One person can control the entire operation. No oil fumes or noise pollution.
- Easy to Maintain. Only the highest quality components and superior construction are used with few moving parts.
- Extremely Safe. Load cannot be released until it is set down on a surface.
- ANVER Mechanical Vacuum Lifters are suitable for 100% duty cycle 24 hour a day operation. They never overheat or burn out.
- Easy to Maintain and Keep Operating in Heavy Production Environments.
- ANVER Mechanical Vacuum Generators comply fully with and meet the standards of US ANSI ASME Standard B30.20 for below-the-hook lifting devices, as well as complying with OSHA and European requirements. Click here for more information on Vacuum Lifting Device Safety Standards.
Standard on Each Generator:
- Vacuum gauge
- Battery operated VLS, vacuum loss sensor and warning system
- Front, adjustable pivoting handle-bar
- Two shut-off valves with locking push-button, 3/8″ NPT port (front/back)
|
|
 |
| Generator Series Model No. | M250M | M250M-5X7 | M250M-5X7H |
| Rated Load Capacity [lbs (kg.)] | 4400 (1996) | 4400 (1996) | 4400 (1996) |
| Unit Weight [lb (kg)] | 302 (137) | 305 (138) | 320 (145) |
| A Max. Headroom [in. (mm)] | 32.25 (819) | 32.75 (832) | 32.75 (832) |
| B Min. Height [in. (mm)] | 20 (508) | 20 (508) | 20 (508) |
| C Handlebar Width [in. (mm)] | 22 (559) | 22 (559) | 22 (559) |
| D Handlebar Length [in. (mm)] | 34.75 (883) | 34.75 (883) | 34.75 (883) |
| E Hardware Centers [in. (mm)] | 12 (305) | 12 (305) | 12 (305) |
| F Mounting Hardware [in. (mm)] | Provided | Provided | Provided |
| G Master Chain Link Dimensions [in. (mm)] | 3.25×5.38 (83×137) | 3.25×5.38 (83×137) | 3.25×5.38 (83×137) |
| H Handlebar Height [in. (mm)] | 11.5 (292) | 11.5 (292) | 11.5 (292) |
| Fits Tube Size [in. (mm)] | 3×6 (76×152) | 5×7 (127×178) | 5×7 (127×178) |
|
|
