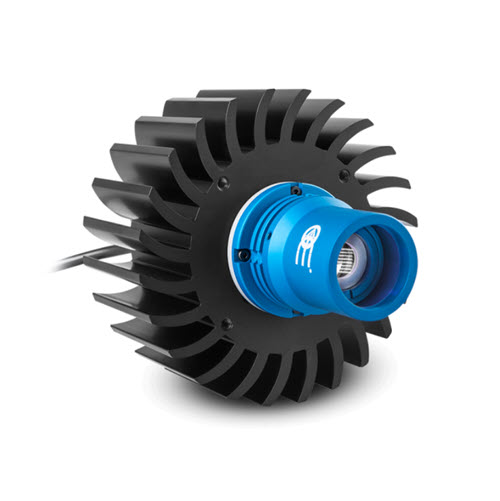

LTPRXP-W OPTO Engineering LED High Power LED pattern projector, white, 4000 K
$0.00
| Lighting specifications | ||
| Active area diameter | (mm) | 11 |
| Light color, peak wavelength | white, 4000 K | |
| Spectral FWHM | (nm) | – |
| Illuminance (1) | (klux) | 85 |
| Electrical specifications | ||
| Operating mode | Continuous | |
| Supply voltage (2) | (V) | 24 |
| Power consumption | (W) | 13 |
| LED forward voltage typical (max) (3) | (V) | 14 (14.6) |
| Max LED forward current (4) | (mA) | 700 |
| Estimated MTBF (5) | (hours) | > 65000 |
| Connector | M8 | |
| Cables | CB244P1501 included | |
| Mechanical specifications | ||
| Mount | C | |
| Phase adjustment | Yes | |
| Diameter | (mm) | 105.0 |
| Length | (mm) | 116.8 |
| Mass | (g) | 411 |
| Environmental specifications | ||
| Operating temperature | (°C) | 0-40 |
| Storage temperature | (°C) | 0-50 |
| Operating relative humidity | (%) | 20-85, non condensing |
| Installation | Indoor use only | |
| Eye safety | ||
| Risk group according to CEI EN 62471:2010 | Risk group 2 | |
