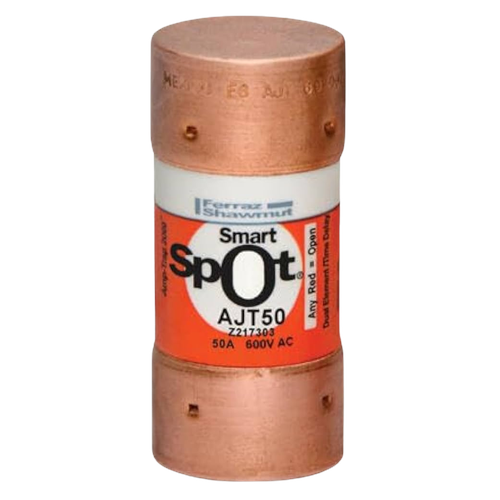

AJT50 FERRAZ SHAWMUT Class J – Time-delay 600VAC 400VDC 50A

AJT50 FERRAZ SHAWMUT Class J – Time-delay 600VAC 400VDC 50A

SPECIFICATIONS:


• AC Rated Voltage: 600 V UL DC
• Rated Voltage: 400 V UL
• Frequency: 50/60 Hz
• Rated Current: 50 A
• Fuse Class: Class J
• Characteristic Type: Time Delay
• Maximum Breaking Capacity AC I.R.: 200 kA
• Connection/Terminal Material: Tin-plated Copper
• Terminal Type: Ferrule Product
• Diameter: 27 mm
• Product Length: 60.5 mm
• Body/Insulation Material: GMG
• AC or DC: AC/DC
• RoHS Compliance: Yes
• EAN/UPC Code: 782001962364 Sales Quantity: 10 units
