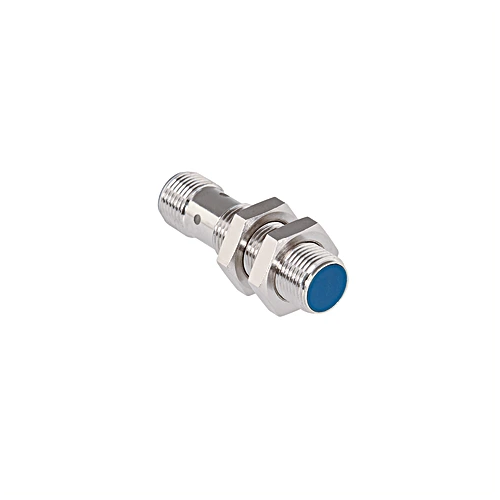

I12H003 wenglor Robust design inductive sensors with increased switching distances, featuring simplified
$0.00
Robust design inductive sensors with increased switching distances, featuring simplified mounting and effective measurement values. Incorporates innovative ASIC switching technology and integrated fault indication for reliable performance.
Ficha técnica
| Switching distance: 4 mm | Correction factor stainless steel V2A: 1.02 |
| Correction factor CuZn: 0.54 | Correction factor Al: 0.52 |
| Mounting: flush (A/B/C/D in mm: 0/8/12/0) | Mounting B1: 0…2 mm |
| Switching hysteresis: < 10 % | Supply voltage: 10…30 V DC |
| Current consumption (Ub = 24 V): < 7 mA | Switching frequency: 1.150 Hz |
| Temperature drift: < 10 % | Temperature range: -40…80 °C |
| Switching output voltage drop: < 1 V | Switching current/switching output: 150 mA |
| Residual current at output: < 100 µA | Short-circuit protection: yes |
| Polarity reversal protection: yes | Overload protection: yes |
| Protection category: III | Housing: Brass, nickel-plated |
| Active surface: Plastic PBT | Protection class: IP67 |
| Connection type: M12 × 1 connection; 3-pin (plug variant) | Weight: 11 g |
| M12×1 sleeve: 12 Nm | MTTFd (EN ISO 13849-1): 3.706,54 years |
| Output: PNP NO | Error display: yes |
| Reduced mounting distance thanks to weproTec by wenglor | Innovative ASIC switching technology |
| Integrated fault indication |
