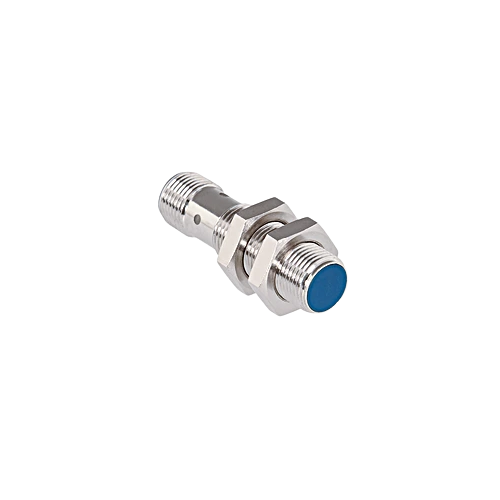

I12H022 / wenglor / Inductive sensors with increased switching distances feature a robust design, simplified mounting…
$0.00
Inductive sensors with increased switching distances feature a robust design, simplified mounting, and reliable measurement values for demanding industrial applications.
Ficha técnica
| Switching distance: 4 mm | Correction factors stainless steel V2A/CuZn/Al: 1.02/0.54/0.52 |
| Mounting: flush | Mounting A/B/C/D in mm: 0/8/12/0 |
| Mounting B1 in mm: 0…2 | Switching hysteresis: < 10 % |
| Supply voltage: 10…30 V DC | Current consumption (Ub = 24 V): < 7 mA |
| Switching frequency: 1,110 Hz | Temperature drift: < 10 % |
| Temperature range: -40…80 °C | Voltage drop switching output: < 1 V |
| Switching current/switching output: 150 mA | Residual current at output: < 100 µA |
| Short circuit protection: yes | Polarity reversal protection: yes |
| Overload protection: yes | Protection category: III |
| Housing: Brass, nickel-plated | Active surface: Plastic, PBT |
| Protection class: IP67 | Connection type: M12 × 1; 3-pin |
| Weight: 11 g | MTTFd (EN ISO 13849-1): 3,706.54 a |
| Delivery volume: 1 hex nut MUTTER-M12-E001, 1 sensor | Packaging unit: 1 piece |
| Error display function: yes | PNP NC output: yes |
| Torque M12×1 sleeve: 12 Nm |
